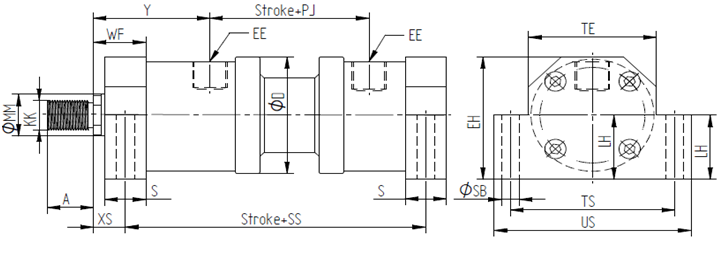

Model 18 Side Lugs Mount (ISO MS2)

Side lug mounts are for moving loads along a flat guided surface as in a carriage along rails.The mounting surface should be flat and parallel to the centerline of the piston rod. The load should be guided to traverse along the centerline of the piston rod.The frame on which the cylinder is mounted must be sufficiently rigid to resist bending moments.With unsupported loads, the bearing must absorb more force. For these applications, the larger available rod is recommended, and stop tubes should be considered.

Bore EE BSP EH LH S SB ST TE TS US WF XS Y Stroke+
PJ SS
25 1/4" 60 32 20 9 32 56 75 92 28 18 58 77 142
32 1/4" 72 38 25 11 38 67 90 110 32 19.5 64 89 163
40 1/2" 82 43 25 11 43 78 100 120 32 19.5 71 97 183
50 1/2" 100 52 32 14 52 95 120 145 38 22 72 111 199
63 3/4" 120 62 32 18 62 116 150 180 45 29 82 117 211
80 3/4" 135 70 40 22 70 130 170 210 54 34 92 134 236
100 1" 161 82 50 26 82 158 205 250 57 32 108 162 293
125 1' 196 100 56 33 100 192 245 300 60 32 121 174 321
160 1-1/4" 238 119 60 33 119 238 295 350 66 36 143 191 364
200 1-1/4" 288 145 72 39 145 285 350 415 75 39 190 224 447
